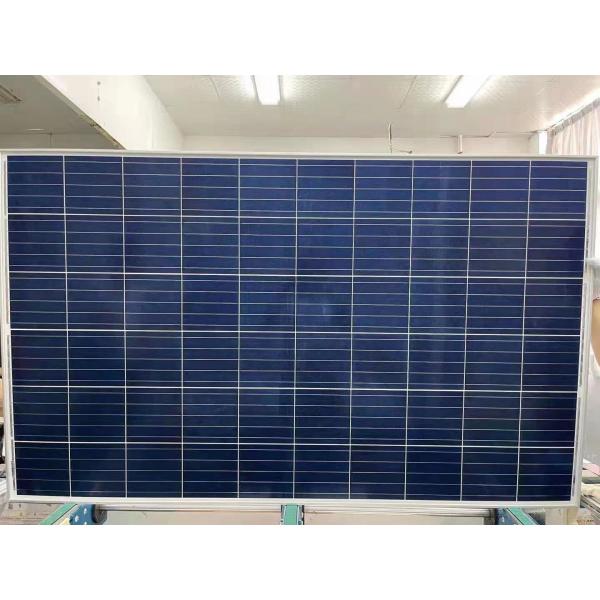

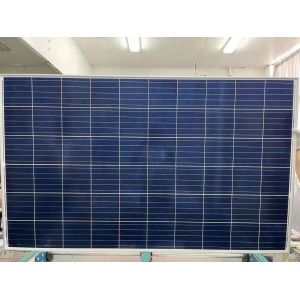

FSM275~FSM285P60 (275W/280W/285W) 60*5BB Polycrystalline Solar Cell
PV Module
Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)
| Module Type | FSM275P60 | FSM280P60 | FSM285P60 |
| Maximum Power-Pmax (Wp) | 275 | 280 | 285 |
| Voltage at Maximum Power-Vmp (V) | 31.5 | 31.8 | 32.2 |
| Current at Maximum Power-Imp (A) | 8.73 | 8.81 | 8.86 |
| Open Circuit Voltage-Voc (V) | 38.3 | 38.5 | 38.9 |
| Short Circuit Voltage-Isc (A) | 9.17 | 9.23 | 9.28 |
| Module Efficiency-ηm (%) | 16.9% | 17.2% | 17.5% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.40%/℃ |
| Temperature Coefficients of Voc | -0.31%/℃ |
| Temperature Coefficients of Isc | 0.04%/℃ |
Mechanical Characteristics
| Cell Type | 5BB Poly Crystalline 157×157mm |
| No. of Cells | 60 (6×10) |
| Dimension | 1640×992×35mm |
| Weight | 17.5 Kg |
| Junction Box | IP68 rated, 3*20A diodes |
| Output Cables | 4.0mm², 1100mm Length (Optional) |
| Connectors | MC4 compatible |
| Packing | 31PCS/Pallet, 952PCS/40’HC |
Raw Materials Descriptions
1. Glass
Anti-reflective coating to increase module efficiency up to 2%.
Light transmittance improvement more than 3%. New technology adopts
on surface to improve self-cleaning ability.
2. Backsheet
Outstanding weatherproof performance. Low moisture permeability
against snail trail defect. Excellent electric insulation for high
system voltage up to 1500V. White and black color is optional.
3. Solar Cell
Monocrystalline solar cells from gallium doped wafers adopt PERC
technology for higher power efficiency. Stable performance output
even in weak light environment. PID free treatment.
4. EVA/POE Film
Light transmittance above 92%. Snail trail prevention treatment. UV
resistance against ageing.
5. Junction Box
IP68 protection grade. High quality diodes for electric safety and
protection of whole solar power system. 4mm² PV wires with MC4
compatible connectors for easy installation. 1500V system voltage
available.
6. Aluminum Frame
Anodic oxidation layer resistant to chemical corrosion. Strong
mechanical load resistance up to 5400Pa. Silver and black color is
optional.
Production Descriptions
FINERGY made large investments on automatic equipment and
production lines since 2016. The cells soldering and string are
completed by automatic high speed soldering machines. Then, the
robots put the strings on glass as type setting. Automatic
mechanical transfer of materials to eliminate damage and human
errors. There're 3 channels of EL detections and final power test
in the whole process to save waste and ensure high quality.
QC Inspections
Besides EL detections and power test on production, the QC staffs
of FINERGY company also take 4 times of visual inspections. Each
qualified panel has to be QC PASS sealed in red on the backsheet.
We promise each product to customers is perfect.
Standards
FINERGY factory is ISO9001, ISO14001 and OHSAS18001 approved. The
production processes follow strictly with IEC61215 and IEC61730
standards. Besides these, the ISO and TUV organizations take
factory period inspections once a year.
