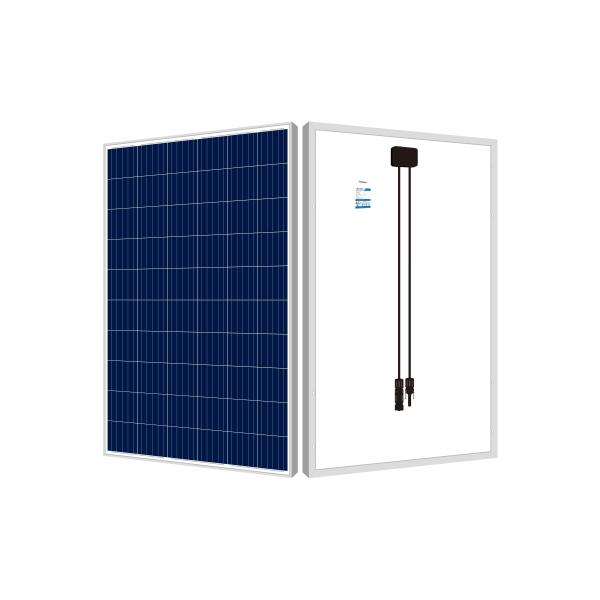

FSM275~FSM285P60 (275W/280W/285W) 60*5BB Polycrystalline Solar Cell
PV Module
Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)
| Module Type | FSM275P60 | FSM280P60 | FSM285P60 |
| Maximum Power-Pmax (Wp) | 275 | 280 | 285 |
| Voltage at Maximum Power-Vmp (V) | 31.5 | 31.8 | 32.2 |
| Current at Maximum Power-Imp (A) | 8.73 | 8.81 | 8.86 |
| Open Circuit Voltage-Voc (V) | 38.3 | 38.5 | 38.9 |
| Short Circuit Voltage-Isc (A) | 9.17 | 9.23 | 9.28 |
| Module Efficiency-ηm (%) | 16.9% | 17.2% | 17.5% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.40%/℃ |
| Temperature Coefficients of Voc | -0.31%/℃ |
| Temperature Coefficients of Isc | 0.04%/℃ |
Mechanical Characteristics
| Cell Type | 5BB Poly Crystalline 157×157mm |
| No. of Cells | 60 (6×10) |
| Dimension | 1640×992×35mm |
| Weight | 17.5 Kg |
| Junction Box | IP68 rated, 3*20A diodes |
| Output Cables | 4.0mm², 1100mm Length (Optional) |
| Connectors | MC4 compatible |
| Packing | 31PCS/Pallet, 952PCS/40’HC |
KEY FEATURES
- Polycrystalline Solar Cell adopts new technology to guarantee
higher output power and higher module efficiency.
- Anti-reflective coated galss to increase module efficiency up to 2%
and improve self cleaning ability.
- Excellent Anti-PID performance guarantee limited power degradation
for mass production.
- Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
as per IEC61215 & IEC61730 standards.
- High salt mist and ammonia resistance certified by TUV.
- Barcode, material and parameter binding data traceable, searchable
and freezing.
- Full production from automatic equipment and production lines to
eliminate human errors and improve quality.
- Intelligent MES system applied together with automatic production
lines for more efficient management.
- 3 channels of EL detections, 4 times visual inspections and flash
power test on each panel before packing.
- 15 years material and craftmanship warranty, 12 years power output
no less than 90% and 25 years power output no less than 80%.
Advantages of Finergy
- Cost Control
FINERGY is in-depth study of intelligent manufacturing. We combined
international advanced automation facilities and production lines
together with ERP, MES, WMS and CRM information systems. We will
actively explore and practice the integration of the two to build a
smart factory. In the processes of promotion, we will improve the
process capacity, reduce the number of products in process, improve
the production efficiency; improve the rate of good products,
reduce the quality cost; save the labor cost, eliminate the waste
and reduce the comprehensive cost.
- Quality Control
Quality is the life of FINERGY. The company established a perfect
quality control system and implements the whole process quality
control of raw materials, production, inspection, warehousing,
delivery and etc. Through advanced automatic equipment and
production line, it’s able to eliminate human defects and improve
products quality. Through digital information systems, we can
achieve products quality traceability, provide customers with
efficient and quick after-sales service to protect the benefits of
customers.
- Green to Green Factory
The total power consumption of FINERGY workshops comes from the
solar systems on the factory roofs. It’s a circle of solar energy
application. FINERGY is a practical case of energy conservation and
emission reduction.
- Large Quantity Deliveries Every Year
FINERGY started investments of automatic equipment and productions
since 2016. The total annual production capacity has reached 800MW
approximately. Hundreds megawatts of solar panels are produced and
shipped from FINERGY factory. The products were praised by
customers as per higher quality, price/ performance ratio.
Production Workshop
1.1MW Ground Mounted Solar Project in 2017
