FSM360~FSM370M60HL (360W/365W/370W) 9BB M6 MONO PERC Half-Cell PV
Module
KEY FEATURES
- 9 Busbar M6 Mono Half-Cell adopts PERC technology to guarantee
higher output power and higher module efficiency.
- Mono PERC Half-Cell PV module offers better temperature-dependent
performance, less shading effect on the energy generation, lower
risk of hot spot.
- Excellent Anti-PID performance guarantee limited power degradation
for mass production.
- Advanced glass and cell surface textured design ensure excellent
performance in low-light environments (e.g. early morning, dusk and
cloud, etc).
- Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
- High salt mist and ammonia resistance certified by TUV SGS
- 3 times online EL inspections and power test before packing
- 12 years product warranty and 25 years linear power warranty
Electrical Characteristics under STC
| Module Type | FSM360M60HL | FSM365M60HL | FSM370M60HL |
| Maximum Power-Pmax (Wp) | 360 | 365 | 370 |
| Voltage at Maximum Power-Vmp (V) | 33.7 | 33.9 | 34.1 |
| Current at Maximum Power-Imp (A) | 10.69 | 10.77 | 10.86 |
| Open Circuit Voltage-Voc (V) | 40.9 | 41.1 | 41.3 |
| Short Circuit Voltage-Isc (A) | 11.20 | 11.28 | 11.37 |
| Module Efficiency-ηm (%) | 19.5% | 19.7% | 19.9% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.350%/℃ |
| Temperature Coefficients of Voc | -0.289%/℃ |
| Temperature Coefficients of Isc | 0.048%/℃ |
Mechanical Characteristics
| Cell Type | 9BB M6 MONO PERC 166×83mm |
| Number of Cells | 120 (60×2) |
| Dimension | 1768×1048×35mm |
| Weight | 20 Kg |
| Junction Box | IP68, 3 diodes |
| Output Cables | 4.0mm², 500mm Length |
| Connectors | MC4 compatible |
| Packing | 32PCS/Pallet, 768PCS/40’HC |
FAQ of Finergy Solar Panels
Q1: When and where did Finergy Solar founded?
A: Finergy Solar Tech was founded in Wuxi City, China in 2009. The
factory location is only 100km away from Shanghai City, and 150km
away from Shanghai Seaport. The logistic transportation from
factory to the seaport is very convenient.
Q2: What are the mejor sales markets for Finergy solar panels?
A: The largest quantity of Finergy solar panels were shipped to
Europe, South America and Asia countries, such as Italy, Spain,
Greece, Mexico, Colombia, Argentina, Japan, Korea, Bangladesh and
etc.
Q3: What's the maximum power of Finergy solar panel?
A: The max. power of Finergy solar panel can reach 600W with 156PCS
of M10 182*91mm cells. The weight can be within 30kg per piece.
It's easier to move and install.
Q4: What's the delivery time if order from Finergy?
A: The exact delivery time is decided by the order quantity. The
general production capacity of Finergy workshop is 3,000 pieces per
day for any type. Take 1MW quantity for example, we're able to
deliver within one week.

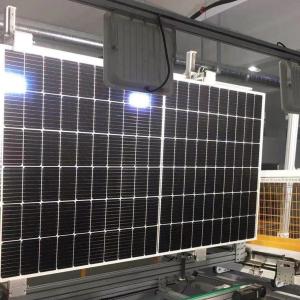

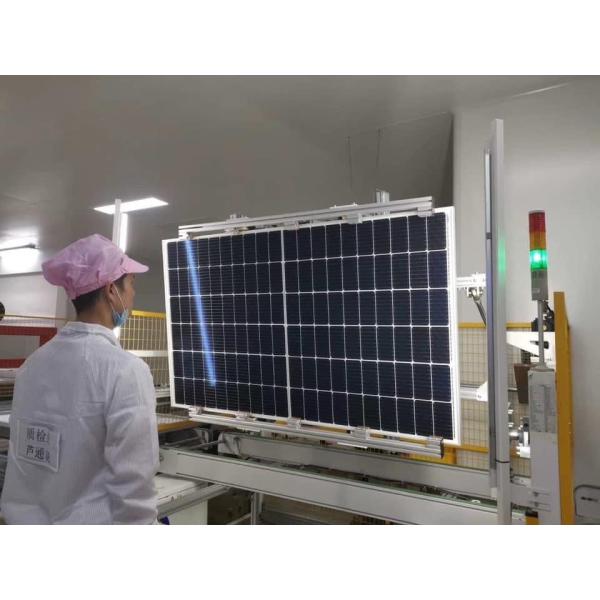

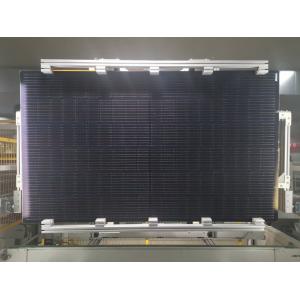

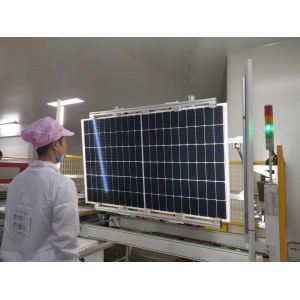

Advanced Production Facilities & Lines Display
