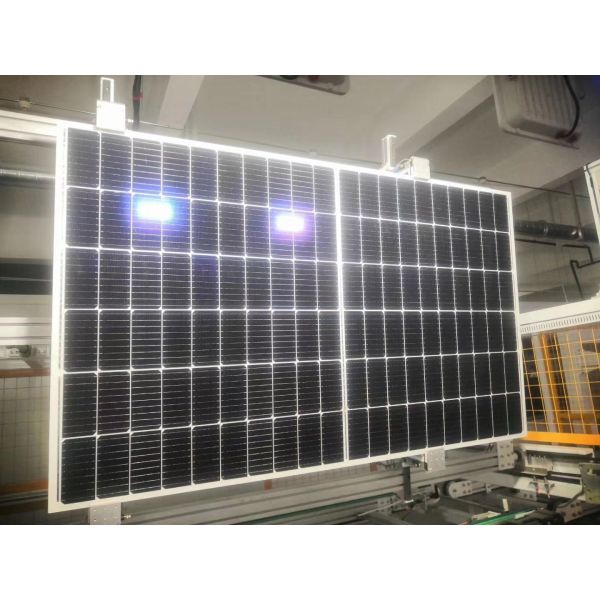

FSM360~FSM370M60H (360W/365W/370W) 120*9BB MONO PERC Half Cell PV
Module
Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temprature 25℃, Air Mass 1.5)
| Module Type | FSM360M60H | FSM365M60H | FSM370M60H |
| Maximum Power-Pmax (Wp) | 360 | 365 | 370 |
| Voltage at Maximum Power-Vmp (V) | 33.7 | 33.9 | 34.1 |
| Current at Maximum Power-Imp (A) | 10.69 | 10.77 | 10.86 |
| Open Circuit Voltage-Voc (V) | 40.9 | 41.1 | 41.3 |
| Short Circuit Voltage-Isc (A) | 11.20 | 11.28 | 11.37 |
| Module Efficiency-ηm (%) | 19.8% | 20.0% | 20.3% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.350%/℃ |
| Temperature Coefficients of Voc | -0.289%/℃ |
| Temperature Coefficients of Isc | 0.048%/℃ |
Mechanical Characteristics
| Cell Type | 9BB MONO PERC 166×83mm |
| No. of Cells | 120 (60×2) |
| Dimension | 1755×1038×35mm |
| Weight | 19.5 Kg |
| Junction Box | IP68, 3*22A diodes |
| Output Cables | 4.0mm², 500mm Length (Optional) |
| Connectors | MC4 compatible |
| Packing | 32PCS/Pallet, 822PCS/40’HC |
Descriptions of Product
- New production technology with combination of series circuit and
parallel circuit.
- 9BB Mono PERC solar cell to guarantee higher output power and
higher module efficiency (up to 20.3%).
- Mono PERC Half-Cell PV module design reduces internal power loss
and offers better temperature-dependent performance.
- At least 50% power generation is available even when half of the
panel is shaded.
- Excellent Anti-PID performance guarantee limited power degradation
for mass production.
- Anti-reflective coating glass to increase module efficiency up to
2%.
- Full production from automatic equipment and production lines
according to IEC61215 & IEC61730 standards.
- Certified to withstand: front side max. 5400Pa; rear side max.
2400Pa.
- Three channels of online EL inspections and power test before
packing
- MES system applied together with production line to trace and
record each product data.
- 12 years product material & craft warranty and 30 years linear
power damping warranty
Advantages of Finergy
- Cost Control
FINERGY is in-depth study of intelligent manufacturing. We combined
international advanced automation facilities and production lines
together with ERP, MES, WMS and CRM information systems. We will
actively explore and practice the integration of the two to build a
smart factory. In the processes of promotion, we will improve the
process capacity, reduce the number of products in process, improve
the production efficiency; improve the rate of good products,
reduce the quality cost; save the labor cost, eliminate the waste
and reduce the comprehensive cost.
- Quality Control
Quality is the life of FINERGY. The company established a perfect
quality control system and implements the whole process quality
control of raw materials, production, inspection, warehousing,
delivery and etc. Through advanced automatic equipment and
production line, it’s able to eliminate human defects and improve
products quality. Through digital information systems, we can
achieve products quality traceability, provide customers with
efficient and quick after-sales service to protect the benefits of
customers.
- Green to Green Factory
The total power consumption of FINERGY workshops comes from the
solar systems on the factory roofs. It’s a circle of solar energy
application. FINERGY is a practical case of energy conservation and
emission reduction.
- Large Quantity Production Capacity and Delivery
FINERGY started investments of automatic equipment and productions
since 2016. The total annual production capacity has reached 800MW
approximately. Hundreds megawatts of solar panels are produced and
shipped from FINERGY factory. The products were praised by
customers as per higher quality, price/ performance ratio.
Automatic Soldering
Production Workshop
